The case system by Henan sdeley Machinery Co., Ltd. is a comprehensive four-tier broiler rearing solution designed for efficient large-scale operations. This integrated system maximizes stocking density (20 birds/m²) while automating key processes. The standard configuration supports one poultry house dimensioned at 59m (L) x 16m (W) x 4m (H), accommodating 30,100 birds using 301 cage groups arranged in 7 rows.
1. Nipple Drinkers
Cone-valve type.
Flow Rate: >80ml/min.
Key Parts: Imported stainless steel.Design: 360° drinking angle.
2. Drinker Cups
PP material.

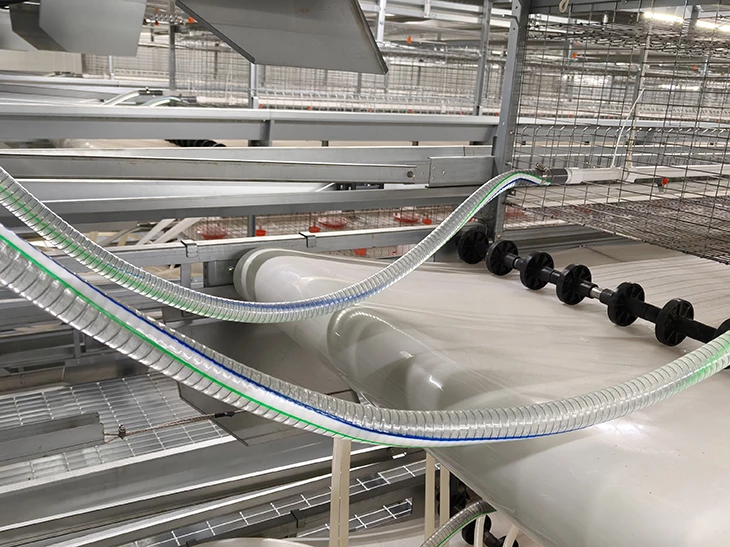

3. Square Water Pipe
PVC Steel Alternative, 22x22mm.
Material: Branded PVC pressure pipe.
Wall Thickness: 2.2mm.
Pressure Rating: ≥1.6 MPa (16kg/cm²).

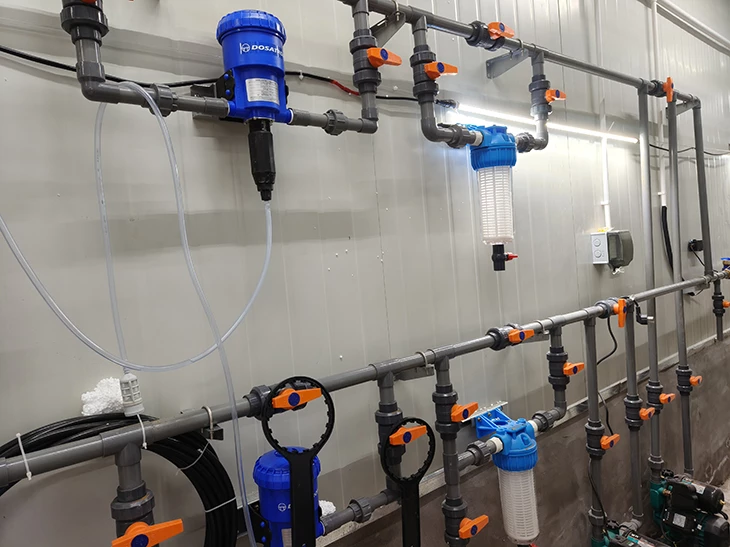

4. Front-end Water Supply
Includes PVC main pipe, filters, accessories, and 1,000L medicator.
5. Line Height Adjustment
Winch system per row (Hot-dip galvanized main wire, Ø1.5mm stainless secondary wire).

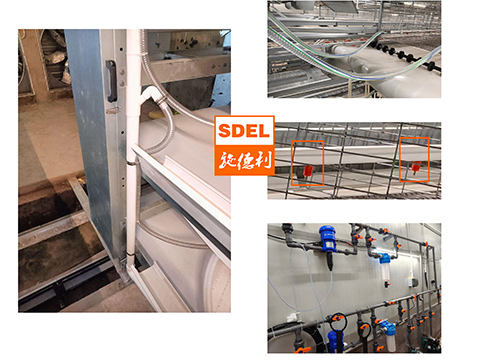

An Automatic Drinking System delivers on-demand clean water to poultry through stainless steel nipple drinkers (50-100ml/min adjustable flow), connected via food-grade PVC pipes with pressure regulators (0.1-0.5 bar). Integrated filtration (120-mesh + UV) ensures water purity, while IoT sensors monitor consumption and detect leaks in real-time. This system reduces water waste by 30-40%, cuts labor by 80%, and enhances bird health through consistent hydration—critical for broilers, layers, and quail across all growth stages.
